Codes and Standards for Manufactured Stone Veneer

Words: Nick Lang
ASTM Standards Although adhered manufactured stone masonry veneer (MSV) has been in use for over 40 years, ASTM standards governing the units and their installation are brand new, having just been first published within the last five years. Before that, there was building code acceptance criteria, but not all manufacturers complied with it, leading to variability in constituent materials, product characteristics, and field performance. According to Chris Hines, Technical Leader at Boral Stone Products LLC, “Leaders in the industry started thinking that there should be a governing standard, to agree on standardized materials, testing and performance. “ After more than eight years of work through ASTM International, Standards C1670, Specification for Adhered Manufactured Stone Masonry Veneer Units, and C1780, Installation Methods for Adhered Manufactured Stone Masonry Veneer Units, were born.
Development of the Standards Before the initial publication of ASTM C1670 in 2013, MSV manufacturers wanting to demonstrate compliance with the building code could voluntarily submit product information and test reports to earn an Evaluation Report through the International Code Council Evaluation Service. The Acceptance Criteria used, AC51, according to Hines, “was essentially a checklist to demonstrate complying with the intent of the code. It pulled some criteria from the general exterior wall section of the code, some from the stucco requirements, and some from the very sparse adhered veneer requirements. A manufacturer would submit verification of meeting the various checklist items to the ES to earn the evaluation report.” One potential problem was that the acceptance criteria requirements were based on performance requirements from other products, not specifically for MSV. The other, larger, problem was that few MSV manufacturers chose to go through the evaluation service process, leading to a wide range of product characteristics and some failures in the field.
The goal of the ASTM standards development work was to improve the performance and image of MSV by developing standard manufacturing and installation requirements. The two new ASTM standards set a minimum bar across the board for all products in this category. According to Hines, who was actively involved in developing the standards through the ASTM process, “For manufacturers, complying with the ASTM standard drives up costs, but it’s the right thing to do. The industry needs to provide predictably performing materials.” MSV manufacturers led the charge to have a new project authorized at ASTM International to develop thenew standards. In compliance with ASTM’s consensus process,the committee that developed Standards C1670 and C1780 included a broad array of interested parties—MSV manufacturers of course, but also raw material suppliers, academia, architects, engineers, and industry trade groups such as the NationalConcrete Masonry Association. For Standard C1670, the group began with the existing AC51, then set about evaluating what should be kept, modified, added, or discarded to develop unit requirements specifically applicable to MSV products. Each decision was thoroughly debated, then approved through ASTM’s consensus process. One example of this process involved the testing and criteria for freeze-thaw durability. AC51 called for the use of a testing procedure (ASTM C67) that was developed to evaluate clay masonry products. The ASTM committee also looked at the existing test method developed for concrete specimens, and discussed at great length the differences in the test methods, and which would yield more relevant results for MSV. It was the consensus of the committee that ASTM C666, Test Method for Resistance of Concrete to Rapid Freezing and Thawing, would provide a better indication of the durability of MSV, so that is the test method included in C1670.
Building Code Requirements for MSV When Hines started in this industry, he said there was little to no language in the codes specifically addressing MSV. The International Building Code (IBC) and International Residential Code (IRC) included some general language on adhered masonry veneer, a category which includes MSV as well as adhered concrete masonry and adhered clay masonry units. However, even those codes essentially referred to the masonry model building code, Building Code Requirements for Masonry Standards (TMS 402), which also addressed only the broader category of adhered veneers. With the publication of the 2018 IBC, however, MSV will be included in national codes for the first time. “We’re starting to see MSV manufacturers claiming compliance with ASTM C1670 more frequently now, with its inclusion in the 2018 IBC,” according to Hines. The IBC includes a requirement for MSV units to meet the requirements of ASTM C1670 in Chapter 21, Masonry, in the section that addresses other masonry units.

Overview of the Specification

ASTM C1670 looks similar to other masonry unit standards developed through ASTM, and covers:
  1. 1)  minimum requirements for constituent materials,
  2. 2)  sampling and testing criteria, and
  3. 3)  requirements for minimum compressive strength, minimum freeze-thaw durability, minimum bond strength, maximum drying shrinkage, and physical dimensions.
These criteria are briefly described below, with a summary of the requirements provided in Table 1.

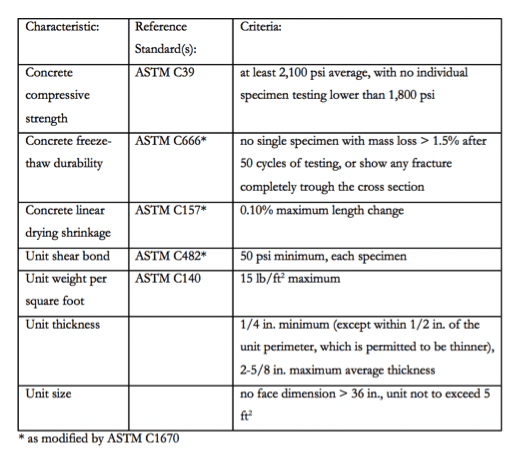

Table 1: MSV Unit Physical Property Requirements

Constituent Materials

The basic materials used to manufacture MSV are the same as those used to produce other modern concrete masonry units, and are governed by ASTM standards to ensure consistent quality: 1) Aggregates—MSV is manufactured primarily using lightweight aggregates to minimize the weight of the units, which helps in handling, in ensuring bond with the mortar setting bed, and minimizing the load on the structural substrate. 2) Cement and supplementary cementitious materials, such as fly ash, provide the binding paste for the concrete matrix. 3) Mineral oxide color pigments and admixtures such as integral water repellents are added to the mix to alter one or more of the features or properties of the finished product.

Compressive Strength

Even though MSV is a veneer and does not carry structural load, ASTM C1670 includes a requirement that MSV units meet a minimum compressive strength as an indicator of product durability and consistency. Other concrete masonry units are manufactured and cured before being tested in compression. However, due to the inherent difficulty in producing consistent results from units of such varied sizes and shapes, the concrete used to manufacture the MSV units is tested as a cylinder rather than testing the units themselves. Each concrete mix is poured into cylinders using ASTM C31, Standard Practice for Making and Curing Concrete Test Specimens in the Field and tested in compression using the procedures in ASTM C39, Standard Test Method for Compressive Strength of Cylindrical Concrete Specimens. (See Figure 1).

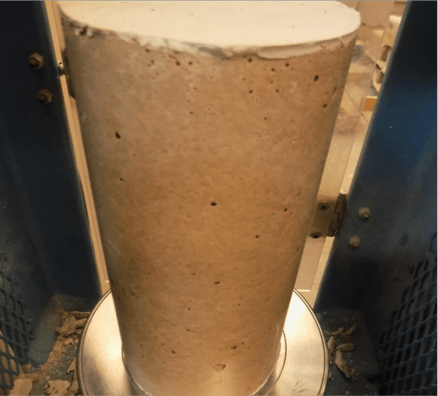

  Figure 1 – Compressive Strength Testing of Cylinders of MSV Mix
The concrete is required to have an average compressive strength of the five specimens tested of at least 2,100 psi, with no individual specimen testing lower than 1,800 psi.

Freeze-Thaw Durability

Durability testing is also required because resistance to freeze-thaw effects cannot be reliably predicted based on factors such as compressive strength, absorption, or concrete density. As for compressive strength, testing takes place on concrete samples, rather than on the MSV units themselves. From the MSV concrete mix, five cast concrete beams are prepared and cured, then tested according to ASTM C666, Standard Test Method for Resistance of Concrete to Rapid Freezing and Thawing, with some modifications. (See Figure 2).

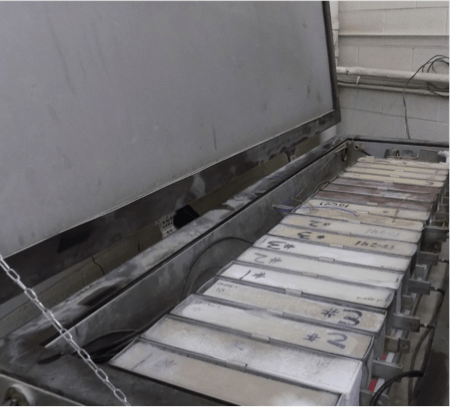

Figure 2 – Freeze-Thaw Testing of Beams of MSV Mix

Shear Bond

Shear bond determines whether or not the MSV units can sufficiently bond with the mortar setting bed. Units are tested using a slightly modified ASTM C482, Standard Test Method for Bond Strength of Ceramic Tile to Portland Cement Paste, and must develop a shear bond of at least 50 psi. The value of 50 psi is generally considered to account for differential shear stress between the adhered veneer and the backup system. The test method is used as a quality assurance test, as well as to verify the shear strength of MSV systems that do not comply with the construction requirements of ASTM C1780, Installation Methods for Adhered Manufactured Stone Masonry Veneer Units. (See Figure 3). For testing, the MSV units are cut into a test sample between 2-1/4 inches square and 4 inches square. The back of the sample must remain as manufactured, so that the test properly indicates the bond strength of the manufactured units.

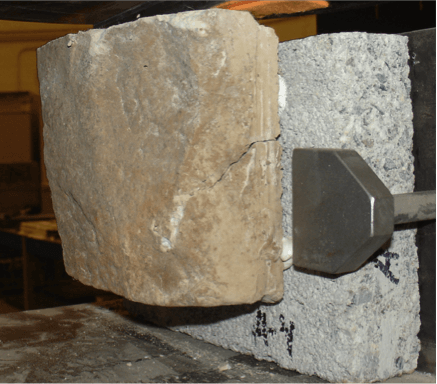

Figure 3 – Shear Bond Testing of MSV Units

Density and Dimensions

ASTM C1670 includes requirements for thickness and face size of the MSV units, as well as a maximum weight per square foot of wall to facilitate handling and installation, as well as to help ensure good bond between the unit and the setting mortar—overly large or dense units will be more difficult to handle and place, and may tend to pull away from or slide down the mortar setting bed. Determining the thickness, area, and volume (hence density) of MSV units is not necessarily straightforward, because the units are intentionally of varying thickness and are often not rectangular. For this reason, ASTM C1670 includes a requirement for an absorption test to be performed and results reported, even though there is no absolute absorption requirement for the units. The absorption testing provides saturated and immersed weights of the units sampled for testing, which are used to determine the saturated density and the unit volume. These values, in turn, are used to determine the average thickness as well as the weight per square foot of the units. MSV units are required to have a minimum thickness of 1/4 inch, although there may be thinner spots in the area within 1/2 inch of the unit edge. The average unit thickness must be no reater t an 2-5/8 inches, and units cannot exceed 36 inches in any face dimension, nor more than 5 sqft2 in total face area. Finally, the weight of the units cannot exceed 15 lb/sqft2. These requirements for size and weight are consistent with current building code requirements for adhered veneer masonry units.

Linear Drying Shrinkage

Like other concrete materials, the concrete used to produce MSV units must meet a maximum linear drying shrinkage criteria—often simply referred to as ‘shrinkage.’ When wetted, most materials increase in size (swell) due to the absorption of water. As these materials dry out, their volume decreases back to the pre-wetted state. This phenomenon applies to concrete materials as well, although the total amount of shrinkage is very small. The drying shrinkage test essentially brings a molded specimen of the MSV concrete mix to equilibrium in moist storage, then brings the same specimen to equilibrium in air storage, and measures the shrinkage of the specimen during this drying process. As an example, if during testing the specimen shrinks 0.001 inches over an 11-1/4-inch length, then the shrinkage for this unit is (0.001/11.25)*100 = 0.008%...which is less than the 0.10% maximum shrinkage required by ASTM C1670.

Finish and Appearance

Finish and appearance provisions limit defects that would detract from either the appearance or performance of the MSV installation, but permit minor chips and cracks incidental to usual manufacturing and handling methods. These requirements apply at the time the units are delivered to the jobsite. At delivery, the finished faces of the delivered units should be compared to an approved sample that includes the range of unit textures, sizes, and colors selected. The approved sample can be manufacturer’s samples, individual units, or field mock-ups when specified. Up to 5% of a shipment is permitted to contain: - broken units, - units with defects or protrusions that interfere with installation or otherwise impair the MSV performance, - chips larger than 3⁄4 inch in the finished face, or an aggregate length of chips exceeding 10% of the unit perimeter, - cracks, crazing, scuffing, or other imperfections in the finished face that detract from the appearance when viewed from a distance of 20 feet under diffused lighting.
Although C1670 limits the number of broken units, keep in mind that broken units are often usable during installation, and in fact MSV units are commonly broken or saw-cut by the installer to fit into particular areas of the construction for field stone and other random stone patterns.

Summary

Even though it is a popular cladding material, adhered manufactured stone masonry veneer has historically not had a national, consensus-based specification to set minimum properties for these products, which in turn has sometimes been a source of performance issues in the field. The publication of ASTM C1670 and its inclusion in the 2018 IBC, however, effectively raises the bar for the quality and consistency of MSV units, providing a comprehensive set of physical criteria to help ensure successful field performance. Compliance with C1670 provides more consistency within the industry, as well as higher confidence in the product from designers and building code officials.
Words: Nick Lang and Maribeth Bradfield Photos: NCMA, Masonry Magazine

Sidebar:

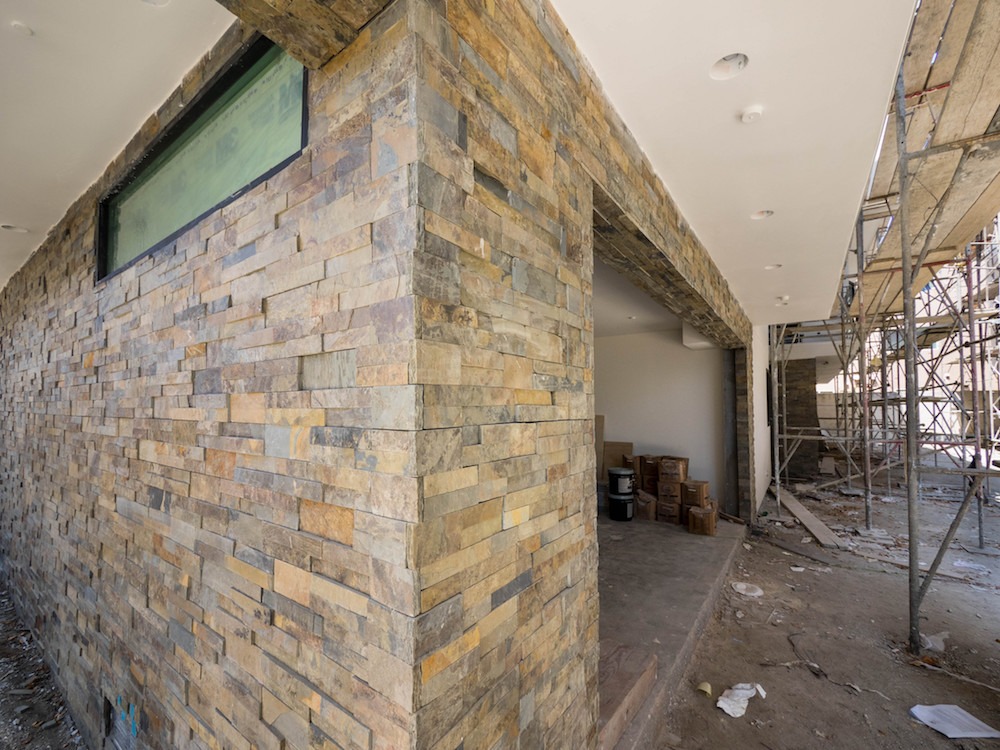

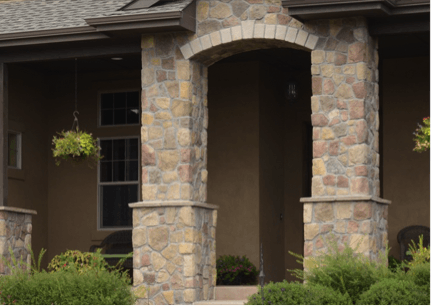

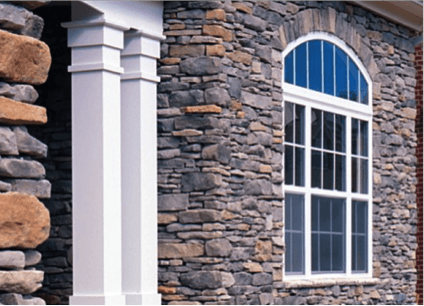

What is Adhered Manufactured Stone Masonry Veneer?
Adhered manufactured stone masonry veneer (AMSMV or MSV) is a manufactured concrete product increasingly used to economically provide the look of natural stone to buildings large and small. MSV is known by a variety of names throughout the country, including precast stone veneer, architectural precast veneer, cast stone veneer, simulated stone, as well as a by several of the popular brand names under which it is sold. MSV installations are similar in color and texture to natural stone and are used as a non-load bearing exterior veneer or as an interior nish and trim on concrete, masonry, wood stud and light gage steel stud walls, as well as on metal buildings. Manufactured stone veneer products are available in a wide array of colors, textures and patterns, providing an almost limitless palette. As a veneer product, MSV’s primary function is to provide a beautiful, durable nish to a wall system. Product lines include not only a large variety of styles and colors, but also specialty units to make installation easier, such as corner units, sills, hearthstones, and caps. MSV provides all of the advantages of other masonry materials, at a lower price and wider availability than natural stone. Because of the lighter weight and manufactured at back, MSV units are also easier and quicker to install than natural stone.
