Vibing Masonry #5-- The Evolution of Concrete Masonry Units: From Ancient Foundations to Modern Innovations

Words: Steve BlyePhotos: Tristan Loper-Flickr, lukestudios, Mike Dillon, Los Angeles

Early Development: The Genesis of Concrete Blocks (early Rome to 1900s)

The history of concrete masonry units (CMUs) or concrete blocks begins with humanity’s earliest binding materials, notably the Romans’ remarkable concrete. Around AD 125, structures like the Pantheon showcased lime-based concrete mixed with volcanic ash from Pozzuoli, near Naples. The Pantheon remains the largest unsupported concrete dome in the world two millennia after its construction.

Recent research by teams from the U.S., Switzerland, and Italy—including MIT, Harvard, Switzerland’s Instituto Meccanica dei Materiali, and Italy’s Archeological Museum of Priverno—reveals why this concrete endured. Using high-resolution imaging and chemical mapping, they found lime lumps (clasts) that grant self-healing properties. When cracks form, water triggers a reaction with quicklime, forming calcium carbonate that crystallizes and seals the fissures. Recreating this hot-mixing technique—where heat fosters clast development, the team confirmed its efficacy, unlike modern mixes without quicklime, which lack this trait.

MIT’s Admir Masic, a professor of civil and environmental engineering, noted his fascination with these clasts, absent in modern concrete. He questioned why Romans, meticulous in crafting optimized recipes over centuries, would include them if not intentional, challenging assumptions of poor quality control. This ancient ingenuity, though not pre-cast into blocks, informs CMU evolution. The leap to modular units awaited modern cement. In 1824, English bricklayer Joseph Aspdin patented Portland cement, heating limestone and clay into a durable, hydraulic powder—key to later CMUs.

Pre-20th-century blocks were rudimentary. In the 1830s and 1840s, builders molded concrete into artificial stone. British builder Joseph Gibbs patented a method in 1832 using cement, sand, and gravel for solid blocks—costly and labor-intensive, yet foundational. In 1882, American Harmon S. Palmer patented a machine for hollow blocks, lighter and insulated, sparking mass production by the 1890s and making CMUs practical.

Initial Usage and Early Milestones (Late 19th to Early 20th Century)

Early CMU applications were experimental but pivotal. In 1892, Chicago’s Unity Building, designed by John Root, used blocks in its 16-story frame, capitalizing on fire resistance post-1871 Great Chicago Fire. By the 1890s, U.S. producers supplied hollow blocks for homes and businesses. In 1900, Palmer’s Chicago plant standardized production, and in 1904, Ernest Flagg built a concrete-block house in Staten Island, New York, promoting affordable durability.

The early 20th century refined CMUs. The National Association of Cement Users (later the American Concrete Institute), formed in 1900, set standards, with the 8x8x16-inch hollow block emerging by 1910—still a norm. Cinder blocks, using coal byproduct as a lightweight, cheap aggregate, debuted.

Sears Roebuck and Company’s kit homes, like the Wizard, democratized block-making. This machine let homeowners pack wet concrete into a mold, compress it, and release it to dry with minimal training. Multiple mold bottoms sped production, and Sears catalogs offered varied face designs, ensuring unique aesthetics.

A company in Wisconsin, the Watertown Concrete Block Company, opened in 1905, promoting their CMU with the following claims:

“The blocks are made of sand and cement in such proportions as to give them strength and durability equal to most of the varieties of stone used for building purposes. For the present, but two sizes will be made, viz: 12x24x8 inches which equals 30 bricks and 9x24x8 inches which equals 22 ½ bricks. The blocks have an opening to prevent frosted walls and dampness and render them easier to handle.

The blocks have been subjected to severe tests and have proven satisfactory to such an extent that the government is now using them in preference to stone. The face of the blocks can be made smooth or rough as desired, and when laid into a wall, they present a front that is pleasing to the sight due to the uniformity and regularity of the same. They are less expensive than either wood, brick, or stone, and another thing that should be remembered is that owing to their being hollow, they can be plastered upon the inside, thus making a saving for lath and lathing."

World War I and housing shortages boosted CMUs in barracks, factories, and suburbs, proving their versatility.

Frank Lloyd Wright’s Textile Block System (1920s)

Frank Lloyd Wright’s Millard House (La Miniatura) in Pasadena, California (1923)

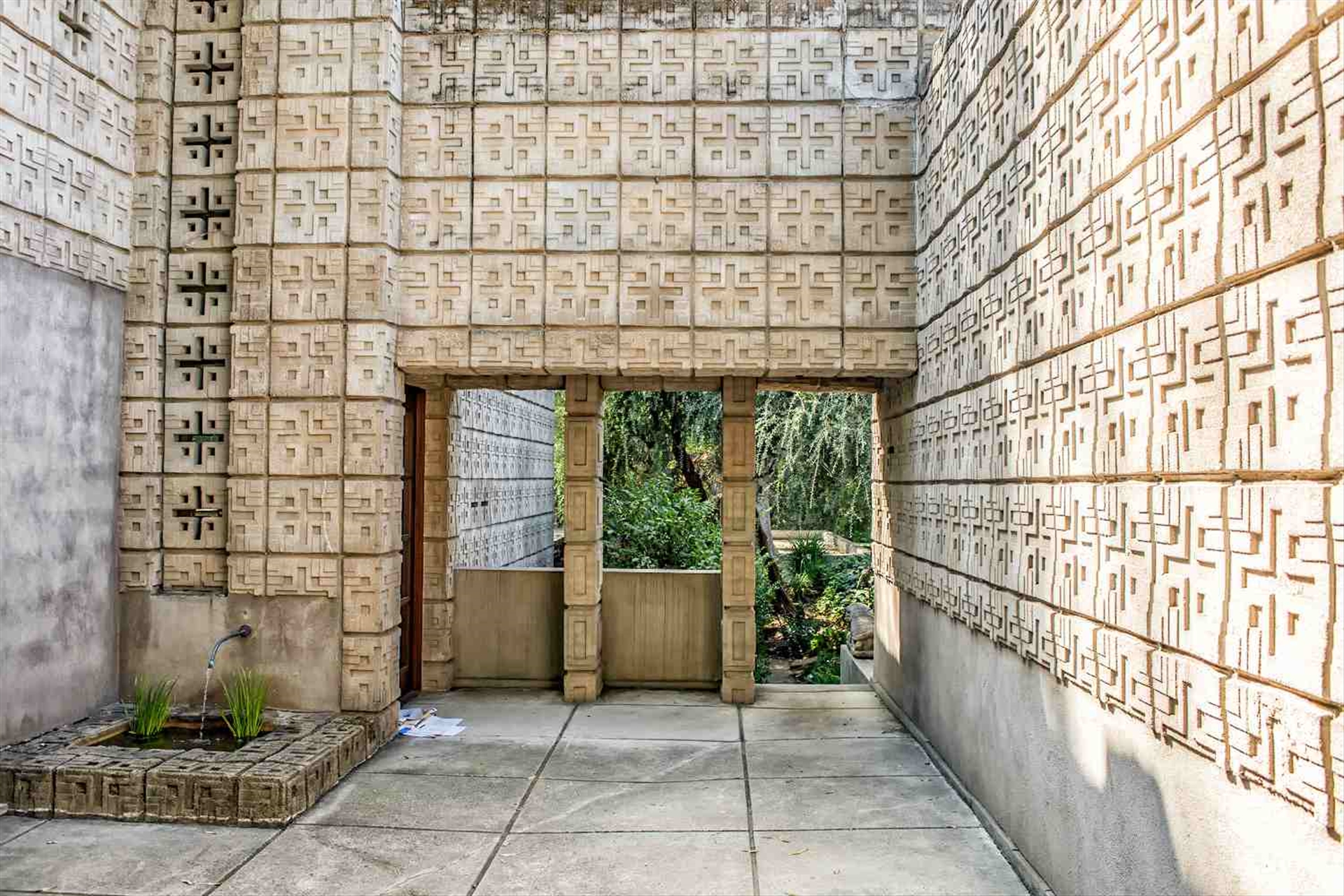

As CMUs grew utilitarian, Frank Lloyd Wright transformed them artistically with his Textile Block system in the 1920s. Using pre-cast, patterned blocks reinforced with steel, Wright fused structure and beauty, inspired by organic design. His Millard House (La Miniatura) in Pasadena, California (1923), featured hollow, decorative blocks in a textured façade.

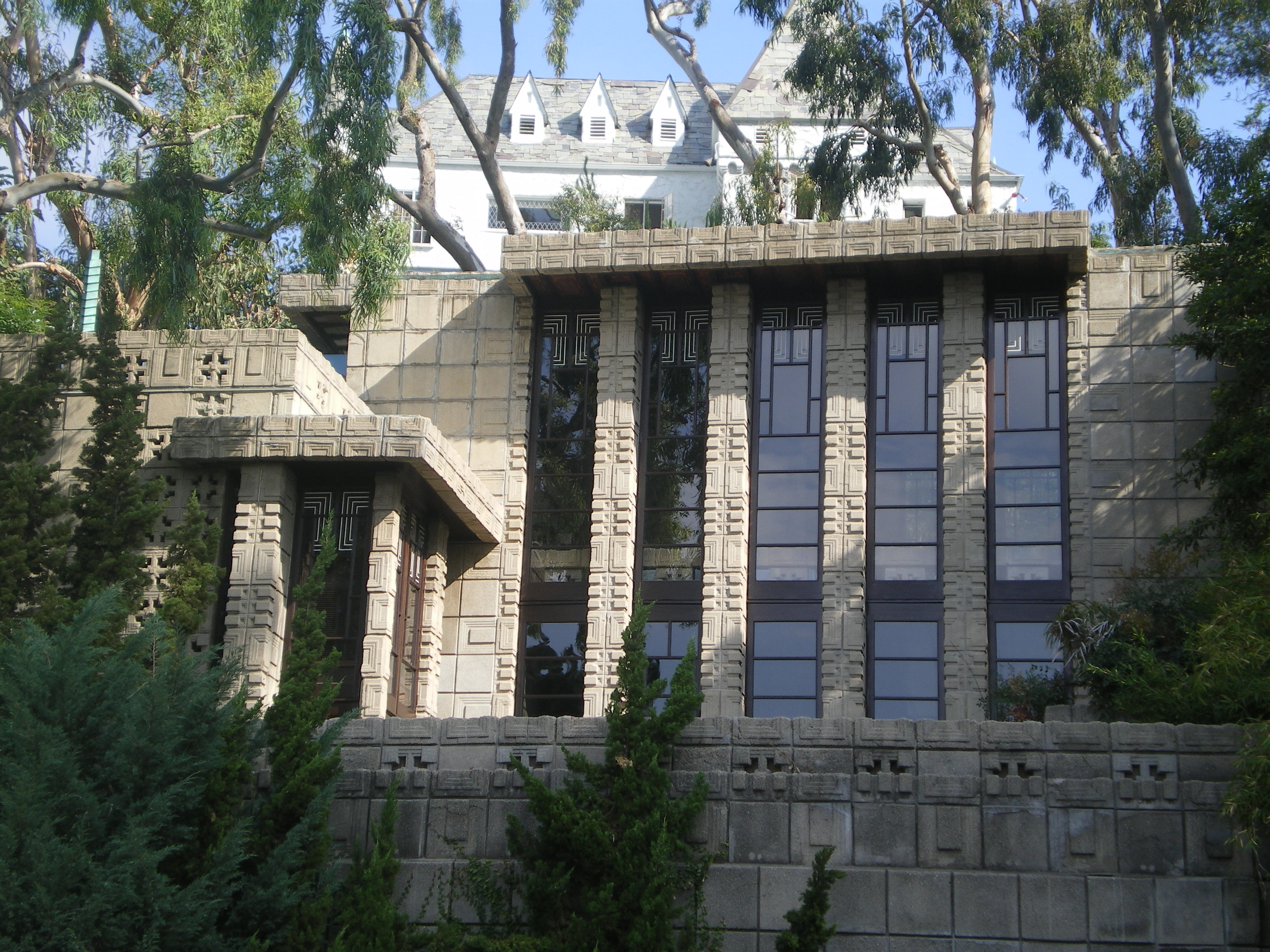

Storer House in Hollywood Hills (1923) followed soon after, also by Wright.

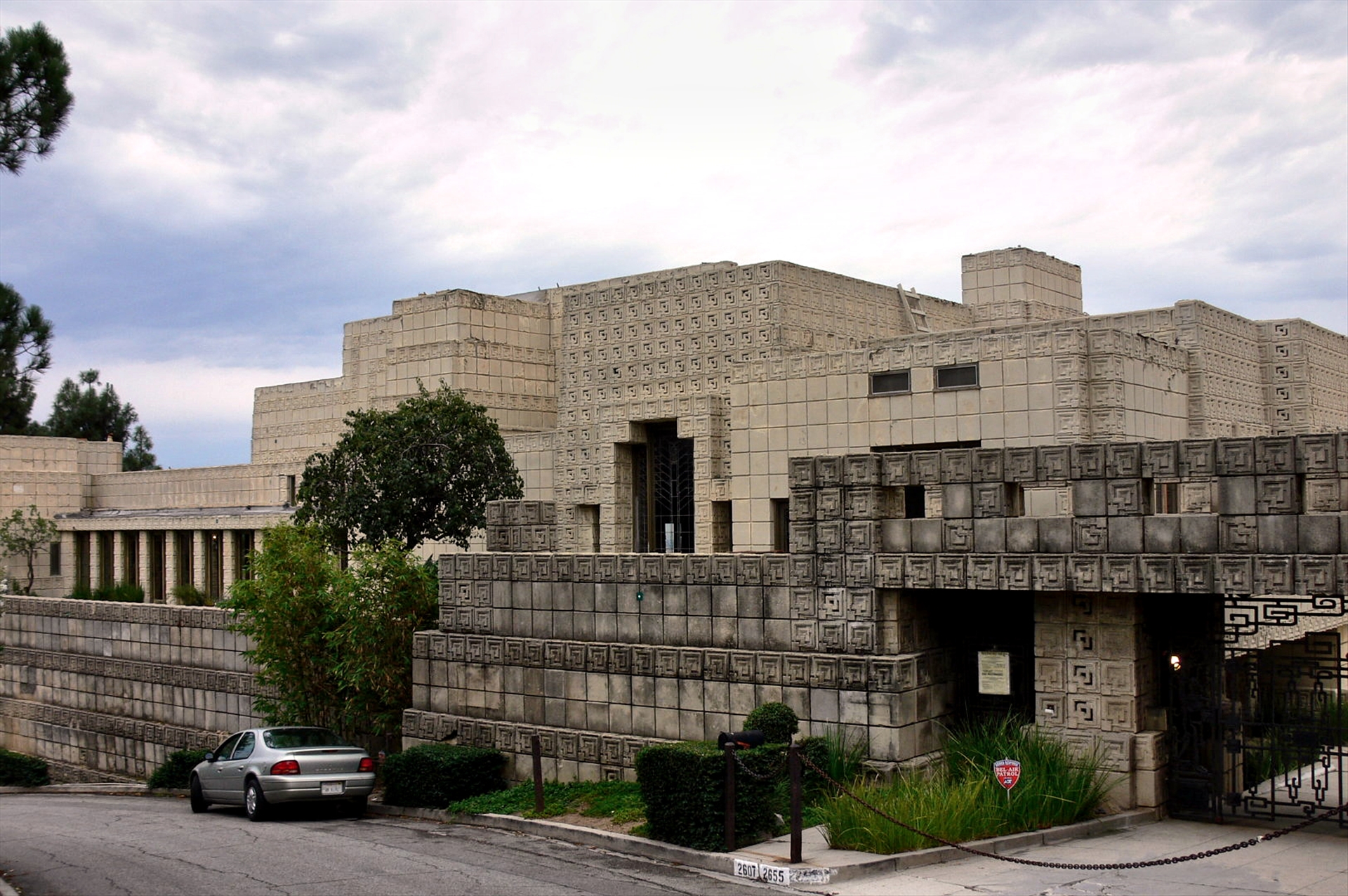

In 1924, Frank Lloyd Wright’s Ennis House in Los Angeles became a pinnacle on the hill, its interlocking blocks resembling Aztec monuments.

The Ennis House and Samuel Freeman House in Hollywood, also in the 1920s, reinforced durability and appeal. Though costly—limiting adoption—Wright’s work elevated CMUs’ aesthetic potential.

Further Developments: Strength and Efficiency (Mid-20th Century)

The mid-20th century honed CMUs amid global needs. The 1930s Great Depression used their affordability for infrastructure, while World War II (1939–1945) saw them in bunkers and rebuilding. Reinforced blocks with steel enhanced strength for taller structures. Lightweight aggregate CMUs, using expanded clay, pumice, or slag, improved insulation, echoing cinder blocks. Autoclaved aerated concrete (AAC), pioneered in Sweden in the 1920s and widespread mid-century, added lightweight, air-bubble units. Precast blocks sped construction, and advanced mortars boosted bonding and lifespan. By the 1960s and 1970s, split-face and colored CMUs met diverse demands, from Soviet housing to U.S. commercial spaces.

Modern Era: Sustainability, Developing World Applications, and Roman Revival (Late 20th Century to April 2025)

Since the late 20th century, CMUs have embraced sustainability. Energy-efficient blocks with higher R-values align with LEED standards, while lightweight blocks—refined with AAC and aggregates—cut loads and emissions, excelling in high-rises and resilient homes.

Recycled-content blocks and low-carbon cement enhance eco-friendliness. Roman concrete’s self-healing, rediscovered by Masic’s team, inspires modern formulations, potentially extending service life and durability, especially in 3D-printed concrete, merging ancient wisdom with new tech.

Wright’s Textile Block system, once cost-limited, gains sustainable promise. Modern precast methods could slash carbon emissions and fossil fuel use across production, transport, construction, and lifecycle, realizing Wright’s vision: beautiful, local, affordable, assemble-friendly, thermally efficient, durable, fire-resistant, reusable, and modular—a machine-age marvel.

In the developing world, CMUs shine. Masonry’s appeal lies in cheap, local sand and gravel, needing little energy and no heavy machinery or fossil fuels—ideal where forests are cleared. Magnesium-oxide cement could make blocks carbon-neutral or negative, aiding climate goals. Reusable units spark secondhand markets, boosting economies, while thermal mass regulates temperatures without mechanical systems.
