Masonry And BIM: The Next Level

Building information modeling, or BIM, has been in the construction industry’s vernacular for several years. Understanding what BIM really will mean to the future of our industry is paramount. If BIM is to be the go-to building concept, then masonry needs to be in the fold. Several organizations and associations are forging the way to make it happen. And, now, it’s time for the entire masonry industry to hop aboard the BIM train.

By David Biggs and Jennifer Morrell

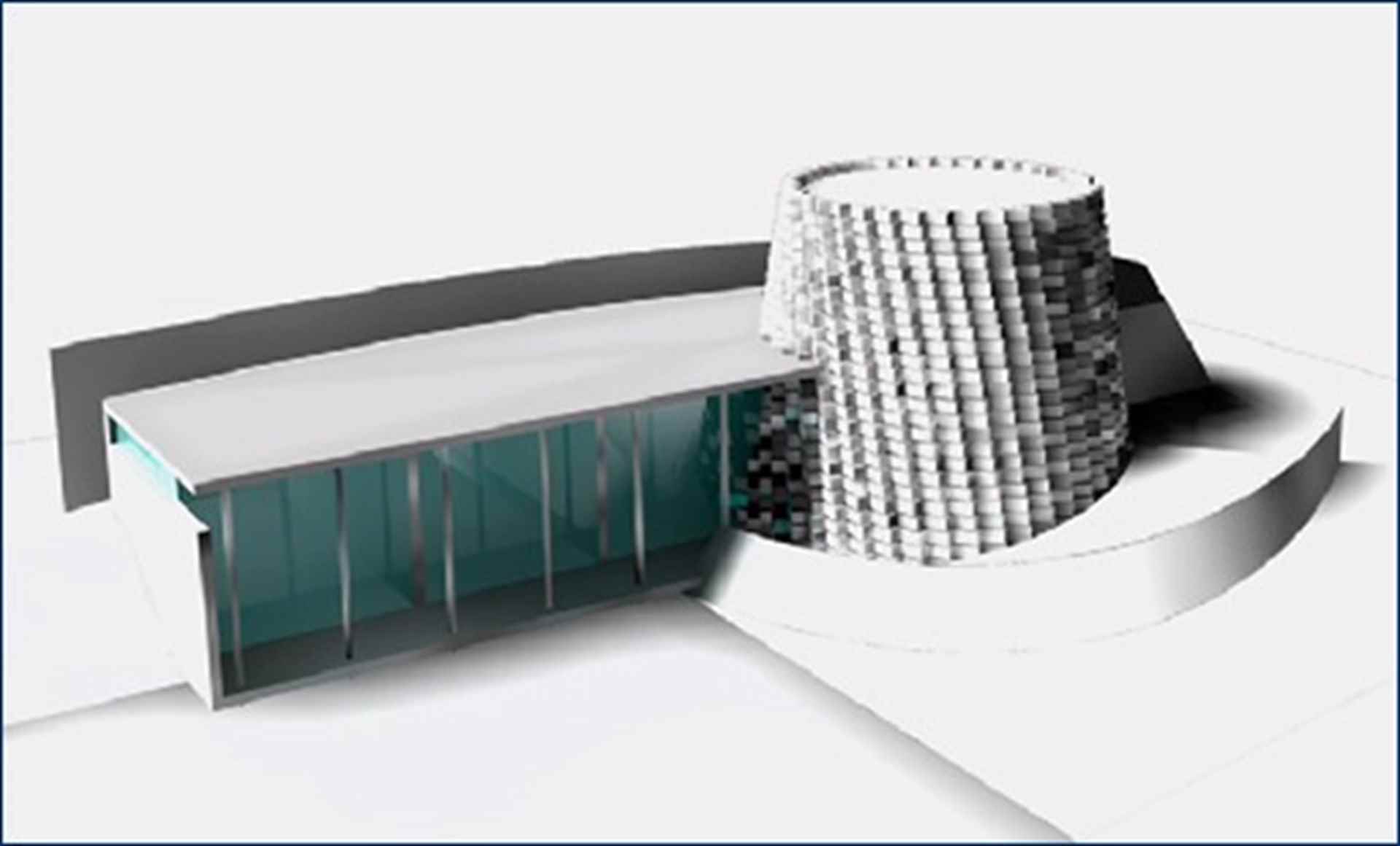

It’s important to first note that Building Information Modeling (BIM) is not a product. It is a concept – a process – that involves digital models of a building. Several software companies make versions of BIM software. The software creates 3D models that represent every aspect of what a building is or could be, from exteriors to internal function.

Not only will a BIM model house information for all involved to access, but also the software can be queried to determine future possibilities, quantities, etc. for materials. More accuracy in the beginning will lead to fewer change orders later. Decision-making becomes easier, and the decisions more valuable – less estimating, assuming and guessing occur. Time, money and labor can be saved as a result. From the first concept of a building through its maturity, information is shared. A definitive, trackable history exists.

What’s interesting about the concept of BIM is that it is considered a “disruptive technology,” in that it is going to significantly change the building process – perhaps in ways we don’t know yet. Rather than simply enhancing a current building method, BIM is its own method. The 3D model aspect creates useful capabilities, like clash detection, quantity takeoffs, field BIM, direct fabrication and energy analysis. These are known as “value networks.” BIM models also store a wealth of facility information. Scheduling, estimating, site planning for material and equipment laydown, and more features for masons will be essential tools within BIM.

Incorporating masonry into BIM

Currently, if an architect or engineer wants to inquire about a type of material to see how it might look or function on a building, masonry is not there. Steel, concrete and precast are, and we can assume wood and light-gauge metal are fast on their heels.

Thanks to six determined and dedicated funding organizations, masonry is knocking at the BIM door as well. The Mason Contractors Association of America (MCAA), the National Concrete Manufacturer’s Association (NCMA), the International Union of Bricklayers and Allied Craftworkers (BAC), Western States Clay Products Association, the International Masonry Institute (IMI) and The Masonry Society (TMS) have banded together to urge software developers to include masonry in BIM software. To do this, the groups are working with The Georgia Institute of Technology (Georgia Tech), which created a “roadmap” that was completed in February 2013.

Georgia Tech’s team is led by Professor Chuck Eastman, who is credited as the leader in BIM technology since the 1970s. Industry work groups of volunteer architects, engineers, material suppliers, vendors, masons, contractors, construction managers and executives have been diligently working as advisors to Georgia Tech.

“Other material systems are already incorporated into BIM, and some are way ahead, such as concrete and steel,” says David Biggs, P.E., S.E., masonry industry coordinator with Biggs Consulting Engineering in Troy, N.Y. “If we don’t do this, masonry will seem difficult to work with. If we don’t have what others have, masonry will be in a bad position from a competitive standpoint.”

The roadmap report is owned by the six organizations aforementioned, but it is available for all interested masonry industry stakeholders as well.

BIM is one-half computer science, and one-half building science. So, the roadmap is both a technical and a marketing document. It depicts not only a vision for the industry, but also the details of how we will get to that vision.

“The roadmap is ‘jargonistic’ and technical, as well as a marketing document,” said Russell Gentry, a structural engineer and professor in the Georgia Institute of Technology School of Architecture, who is the project manager for Georgia Tech. “It can be used by the industry to see as a menu of usefulness. It includes project scopes and is structured around what BIM means to architects and engineers, materials suppliers, mason contractors, general contractors and masons.”

“The report uses flowcharts, graphics and depictions over time,” Gentry continued. “It is a wish list of sorts, and some of what is in the report will need clarification. The initial roadmap gives our vision of the future, and provides a basis for industry comment and input. We imagine that the next phase of the project will clarify the roadmap and will initiate the first steps in the development of masonry BIM.”

The entire roadmap text is available online at www.masonryfoundation.org/pdf/a-roadmap-for-developing-and-deploying-building-information-modeling-bim-for-the-masonry-industry.pdf.

Phase II

The second phase of the process of incorporating masonry into BIM software kicked off June 1, 2013, and involves choosing some of the highest priority items, starting work immediately. For example, materials suppliers will need to develop digital production models of and create a digital library of masonry units and accessories in a common format. This will be considered by an existing “work group.” The contractor/masons work group will have a special task as well. This phase will take up to 18 months to complete. During this time, the determination of what contractors need from BIM will occur, and then educational tools will be available for contractors to access those wants.

Phase II comprises four projects:

Project 1 – Masonry Unit Model Definition

Project 2 – BIM-M Benchmark

Project 3 – Masonry Wall Model Definition

Project 4 – BIM-M Contractor Input

Project 1 includes a major industry effort to develop guidelines and a format for suppliers to specify their materials in a common digital format. The primary emphasis will be to include masonry unit information and, subsequently, will be extended to include accessories. Jeff Elder, P.E., of Interstate Brick will lead this effort for the masonry industry. Georgia Tech will be the prime consultant and will work with volunteers from the Material Suppliers Working Group.

Georgia Tech will conduct Project 2. It includes inviting the major software vendors to create BIM models of actual masonry buildings using their current software. The goal is to highlight how BIM-M is under-represented by current software, and to open a dialog with the vendors for further development.

Project 3 involves yet another major effort on the masonry design side by the Architectural Modeling Working Group and the Structural Modeling Working Group. This effort is led by Ms. Jamie Davis, P.E., Ryan-Biggs Associates. These groups are tasked, in 2013, with researching, developing and detailing 10 masonry wall types that represent commonly used systems throughout the United States. Once completed, Georgia Tech will take the information, develop a digital representation of the systems, interface it with the materials information from Project 1, and feed it to software vendors.

Together, Projects 1 through 3 develop and document the knowledge required for the “front end” of BIM-M, so that architects and engineers can produce BIM models that embed substantial, actionable information about masonry into the design deliverables.

Project 4 is the first major project that directly addresses the needs of the mason, the mason contractor, the construction manager and general contractor. We feel that mason and contractor involvement are so critical to the success of BIM-M that one-third of all the projects in the Roadmap are dedicated to educating masons and improving masonry construction processes. BIM-M can be a tool that raises the bar for all who embrace it.

Tasks within Project 4 involve surveying the contractor community for input on critical issues such as defining best practices and improvement through the use of BIM-M. In addition, such topics as construction safety, project planning, material procurement, quantity take off, cost estimating, wall bracing, and more will be reviewed for possible inclusion in BIM-M software and can help the mason contractor.

The Construction Activities Working Group will be asked to investigate new delivery methods for putting the software tools into the hands of the mason and the contractor. Today, these tools are smartphones, laptops and tablets. On the horizon are hands-free headsets and whatever the imagination can create.

Another significant aspect of Project 4 is the mason and contractor education program. A task is underway to develop educational programs to introduce masons and contractors to increasingly complex digital tools and software, so they will be prepared to use the coming BIM-M software, once it moves to implementation. The industry is partnering with the Associated General Contractors of America to leverage their educational programs on BIM, and developing additional programs directly targeted to masons and contractors. Art Theusch of Collaborative Consulting Inc., is the lead consultant on this task.

Phase III (specification) begins January 2015 and runs through May 2016. This phase will see Georgia Tech take the information developed and prepare proposals for software vendors to include more masonry capabilities into their products. Design and construction workflows will be included. Software vendors will be asked to respond with new or modified products specifically for the masonry industry.

Then the wait begins: How long will it take for the software vendors to respond to our needs? It will be a function of the degree of partnering developed throughout the process by the Executive Committee, the working groups and with our consultants at Georgia Tech.

Phase IV (implementation) begins June 2016 and runs through January 2018. This phase will begin with the implementation of a new era of software for the masonry industry. What follows will be the forever updating and improvements that accompany any software and technological advances.

“We’ll need digital standards that describe masonry materials and systems,” said Gentry. “Masonry BIM models must interact within BIM, conveying things like weight, strength, color, availability and cost.”

Gentry added that the way that the walls are represented in the early stages or in architectural design would need to be considered. Architects play with form and volume, and when they are ready to place materials, digital tools need to be in place in BIM for masonry to be that material.

Planning documents will be created with requirements, digital product models, and schema (how something is represented in a computer) to determine how data structure and masonry fit in.

A “roadshow” will take place with a few different software companies. A prototype for a building will be provided to see what BIM can answer in regard to masonry, in the form of yes/no questions. Georgia Tech will write the software specifications, which takes about two years. Having software specifications established might help software companies feel less at risk regarding incorporating masonry.

So, one of two things could happen: Software companies might see adding masonry as important and, therefore, assume the development costs, implementing masonry over time. Or, the companies might choose to develop masonry into the BIM software with the help of some jumpstart money that our industry would need to raise.

Benefits abound

“BIM will help to minimize change orders on jobs, increasing productivity for contractors and suppliers as everything will be well-defined before the project begins,” said Jeff Buczkiewicz, president and CEO of the MCAA. “BIM also minimizes the element of surprise from the jobsite. Scheduling is a major issue on sites today, and that will be done before the project begins. The schedule will run more efficiently as a result.”

Biggs asserts that it all boils down to better communication. “Better communications will lead to fewer problems, less duplicated information and less erroneous information,” he said. “Better defined data and materials information will be readily available. Mason contractors will have fewer RFIs.

“If an architect creates a model and it’s full of features, he then can give it to a contractor, who can pick out details he’s interested in,” Biggs continued. “Maybe he’ll click on a flashing installation, and a YouTube video pops up or is available. Training right at hand can be a powerful tool.”

It’s no secret that the masonry industry has to be more aggressive in marketing various masonry materials, and incorporating masonry into BIM will go a long way toward that effort.

“BIM will help with e-commerce,” said Gentry. “During the design phase, architects can query a particularly shaped brick, maybe a long brick stretcher, to see if it’s available. We can, for example, know before we start a project the availability from the suppliers, such as Boral or Interstate. Interstate already has inventory online for major distributors.”

We all win

Having masonry incorporated into BIM software will level the playing field with facts and information, says Buczkiewicz. “BIM will bring contractors and suppliers to the initial development process,” he said. “Software will be developed [and currently exists] to show the lifecycle costs of a project. BIM will allow an owner and designer to easily change components of a project and see the impact that change will have. In addition, it will add to the bottom line of everyone by making construction more efficient and safe.”

BIM software companies are aware that this study is in the works. Gentry says the development window would be two to three years. The hopes are that all players in the masonry industry will want to be a part of the effort. Bricks, blocks, stone – it doesn’t matter. All need to be represented as one: masonry.

David Biggs is masonry industry coordinator for BIM-M. You can contact him at biggsconsulting@att.net. Jennifer Morrell is editor of Masonry Magazine. She can be reached at jmorrell@lionhrtpub.com.
