Building Solutions: The Critical Role of Cavity Space in Masonry Moisture Control

Words: Linda Potter
Photos: Hohmann & Barnard

When One Inch Isn’t Enough
Long before “rainscreen” became a popular term in building science, masonry cavity walls were functioning on that very principle. A brick veneer cavity wall is designed with the expectation that water will penetrate the exterior wythe. The goal is not to prevent all water entry: it is to manage it. We intentionally provide a drainage space, direct water downward, and detail the assembly so that moisture exits efficiently through flashing and weeps.

That is the essence of a true rainscreen: allow water in, then give it a controlled path out.

The Air Space: More Than A Dimension On Paper

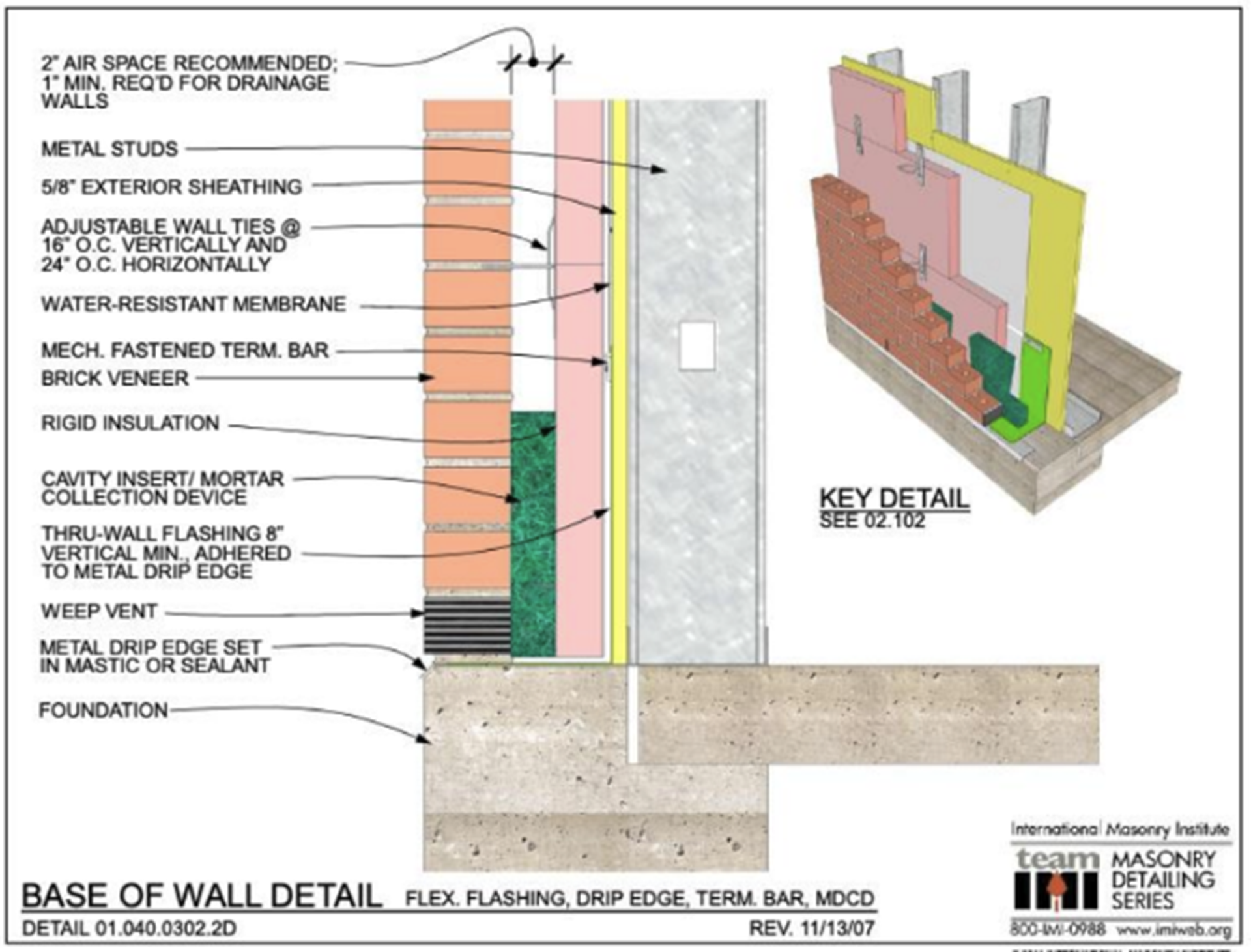

A standard base-of-wall detail often illustrates a 2-inch recommended air space behind the brick, complete with a mortar collection device and full head joint weeps resting on through-wall flashing. However, per the TMS 402/602 Masonry Code, the minimum required air space between the back of the brick and the face of insulation (if present) or backing is 1 inch.

As continuous insulation thickness increases and project teams push to keep overall wall assemblies as slim as possible, we are seeing more designs that approach that 1-inch minimum. On paper, it may meet code. In the field, however, construction tolerances tell a different story.

A specified 1-inch cavity can quickly become a 1/2-inch cavity in the as-built condition. When that happens, adjustable brick ties may no longer fit within the available space, forcing installers to use one-piece anchors that do not accommodate differential movement between the veneer and the backup. Beyond constructability concerns, a reduced cavity risks falling out of code compliance and compromises the wall’s long-term performance.

A 2-inch cavity offers a far more forgiving and functional drainage plane. It provides room for tolerances, accommodates adjustable anchorage, and most importantly, reduces the likelihood of mortar bridging. When mortar droppings bridge the cavity and contact the backup, they create unintended pathways for moisture. A wider cavity helps ensure that water drains down the wall rather than being wicked inward.

Mortar Collection Devices: Critical To Drainage
At the base of the wall, the mortar collection device plays a pivotal role in maintaining the rainscreen concept. Its purpose is simple: keep mortar droppings from clogging weeps and blocking drainage.

Modern mortar collection devices are shaped like a dovetail, preventing all debris from accumulating in a single plane. This geometry allows mortar to settle at varying elevations while preserving open pathways for water to pass through and reach the flashing. For maximum effectiveness, the device must fill the entire air space, whether that cavity is 1 inch, 2 inches, or even wider for facade articulation.

Equally important is the vertical placement of flashing. The through-wall flashing should extend a minimum of 4 inches above the mortar collection device. This ensures that any mortar resting on the upper surfaces of the dovetail, often carrying moisture, remains within the protected flashing zone.

Flashing Is A System
Flashing a masonry wall is not a single product decision; it is the construction of a coordinated system. Through-wall flashing, end dams, termination bars, mortar collection devices, and weeps must work together to shed water effectively.

Weeps should be spaced 24 inches on center and formed as full head joints, not tubes or ropes that can easily clog. Full head joint weeps provide optimal drainage and ventilation, promoting both drying and pressure equalization within the cavity.

At the top edge of the flashing, a termination bar is essential. It secures the flashing in place and helps ensure long-term stability. Over the life of a building, materials move, sealants age, and assemblies are subjected to wind and thermal cycling. Mechanical securement at terminations helps maintain the integrity of the moisture management system.

Building For Durability
Masonry has long been synonymous with durability. But durability is not automatic; it is achieved through disciplined detailing and adherence to best practices refined over decades. When we reduce cavity widths beyond practical limits or eliminate critical components for the sake of efficiency, we undermine the very performance owners expect.

When we build with masonry, we are building for generations. Our clients deserve both beauty and a watertight building. By respecting the principles of the original rainscreen and committing to proper cavity design and flashing systems, we can ensure that masonry walls perform as intended for the life of the structure.
